WISECO
WISECO Piston KT DR/SP/LS600/650 W4597M09600
WISECO Piston KT DR/SP/LS600/650 W4597M09600
In stock, ready to ship
Couldn't load pickup availability
In stock at our shop in west Wales
5 on the shelf, packed and sent from Tal-sarn near Lampeter.
- Free click and collect from the shop at SA48 8QB, usually ready within 24 hours
- 30 days to change your mind, and we pay the postage if it is our mistake
Keep looking
- Brand
- WISECO
- Part number
- 09101659
- EAN
- 0193564139832
- Category
- PISTON + RING KITS
WISECO Piston Kit Forged Series for 4-Stroke
Piston Kit - 96.00 mm - Suzuki
- Forged 4-stroke piston is designed for each specific engine application and built to the tightest tolerances for the ultimate combination of performance and strength
- Dedicated forgings allow for optimized strength-to-weight ratio
- Ideal for multiple purpose riding

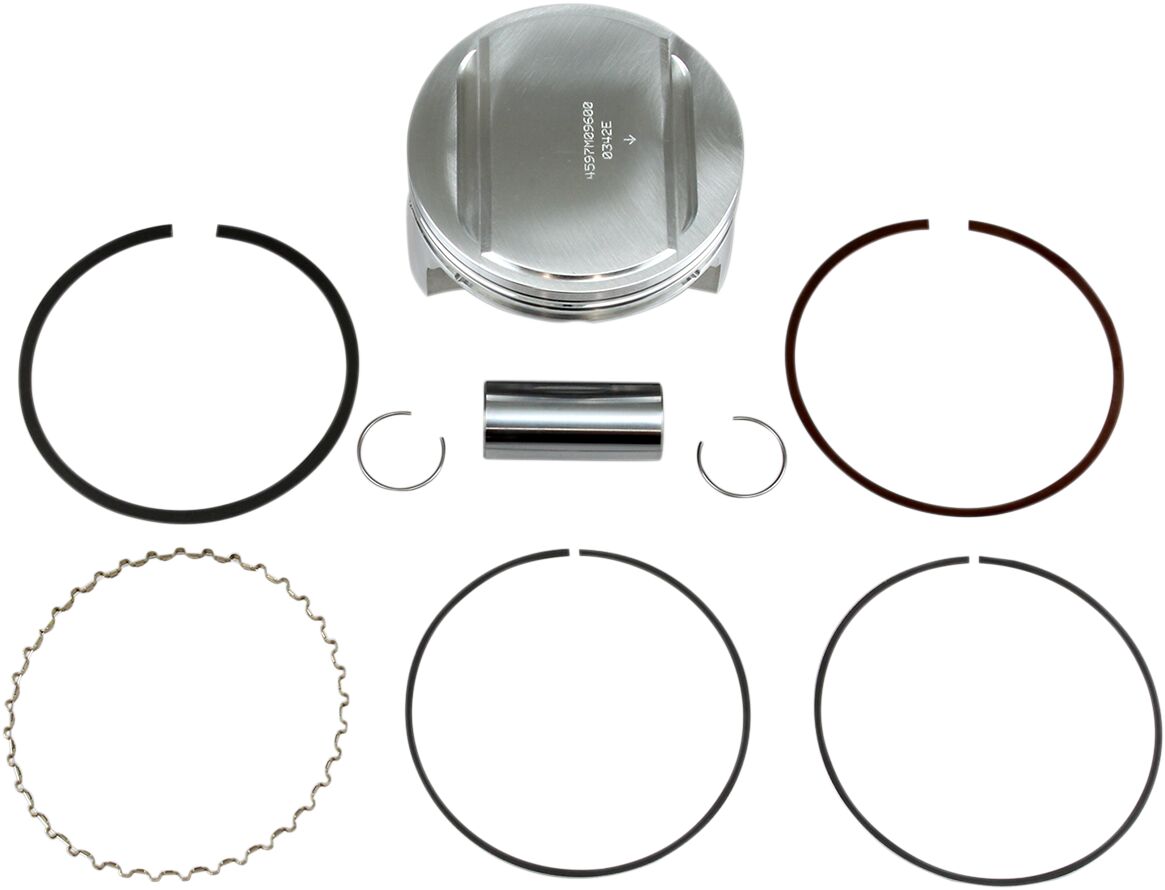

- Kit includes piston, wrist pin, rings and circlips
Fits '85-'89 Suzuki DR-SP 600 DJEBEL. Cylinder boring required. Kit Includes: • 1x Piston • 1x Ring Set #3780XH • 1x Wrist Pin #S551 • 1x Circlip Set #CW23
Note: Fits '85-'89 Suzuki DR-SP 600 DJEBEL. Cylinder boring required. Kit Includes: • 1x Piston • 1x Ring Set #3780XH • 1x Wrist Pin #S551 • 1x Circlip Set #CW23
Specifications
| Brand | WISECO |
|---|---|
| Manufacturer part number | W4597M09600 |
| Manufacturer description | PISTON KT DR/SP/LS600/650 |
| Full description | PISTON KIT |
| Piston Diameter | 95.95 mm |
| Product Name | Piston Kit |
| Riding Style | Adventure Touring / Dual-Sport, Off-Road |
| Stroke Length | 90.40 mm |
| Units | Kit |
| Displacement | 641 cc |
| Model | Forged Series |
| Engine Type | 4-Stroke |
| Bore Size | 96.00 mm |
| Piston Material | Forged 2618 Aluminum |
| Bore - Oversize | +1.00 mm |
| Compression Ratio | Stock |
| Skirt Coating | Non-Coated |
| Country of origin | USA |
| EAN | 0193564139832 |
In the box
- 1 x WISECO Piston Kit Forged Series for 4-Stroke (part number W4597M09600)
Sold individually unless the title or specification states otherwise.
Fits 11 models
- SUZUKI DR 650 (1990-1995)
- SUZUKI DR 650 R (1990-1995)
- SUZUKI DR 650 RE (1994-1995)
- SUZUKI DR 650 RS (1990-1991)
- SUZUKI DR 650 RSE (1991-1995)
- SUZUKI DR 650 S (1990-1995)
- SUZUKI DR 650 SE (1994-1995)
- SUZUKI LS 650 F (1986-1990)
- SUZUKI LS 650 P (1986-1995)
- SUZUKI LS 650 Savage (1989-1994)
- SUZUKI LS650 Savage (1986-1988, 1995)
Years shown are per model. If your bike is not listed, contact us with the year, make and model and we'll confirm before you buy.
Does it fit your bike?
11 models across 1 make. Not sure? Call the parts counter on 01570 470 022.
- DR 6501990-1995
- DR 650 R1990-1995
- DR 650 RE1994-1995
- DR 650 RS1990-1991
- DR 650 RSE1991-1995
- DR 650 S1990-1995
- DR 650 SE1994-1995
- LS 650 F1986-1990
- LS 650 P1986-1995
- LS 650 Savage1989-1994
- LS650 Savage1986-1988, 1995
