WISECO
WISECO Pistn KT Arctic 700 09-12 W40080M10200
WISECO Pistn KT Arctic 700 09-12 W40080M10200
In stock, ready to ship
Couldn't load pickup availability
In stock at our shop in west Wales
3 on the shelf, packed and sent from Tal-sarn near Lampeter.
- Free click and collect from the shop at SA48 8QB, usually ready within 24 hours
- 30 days to change your mind, and we pay the postage if it is our mistake
Keep looking
- Brand
- WISECO
- Part number
- 09103170
- EAN
- 0193564124562
- Category
- PISTON + RING KITS
WISECO Piston Kit Forged Series for 4-Stroke
Piston Kit - 102.00 mm - Arctic Cat
- Forged 4-stroke piston is designed for each specific engine application and built to the tightest tolerances for the ultimate combination of performance and strength
- Dedicated forgings allow for optimized strength-to-weight ratio
- Ideal for multiple purpose riding

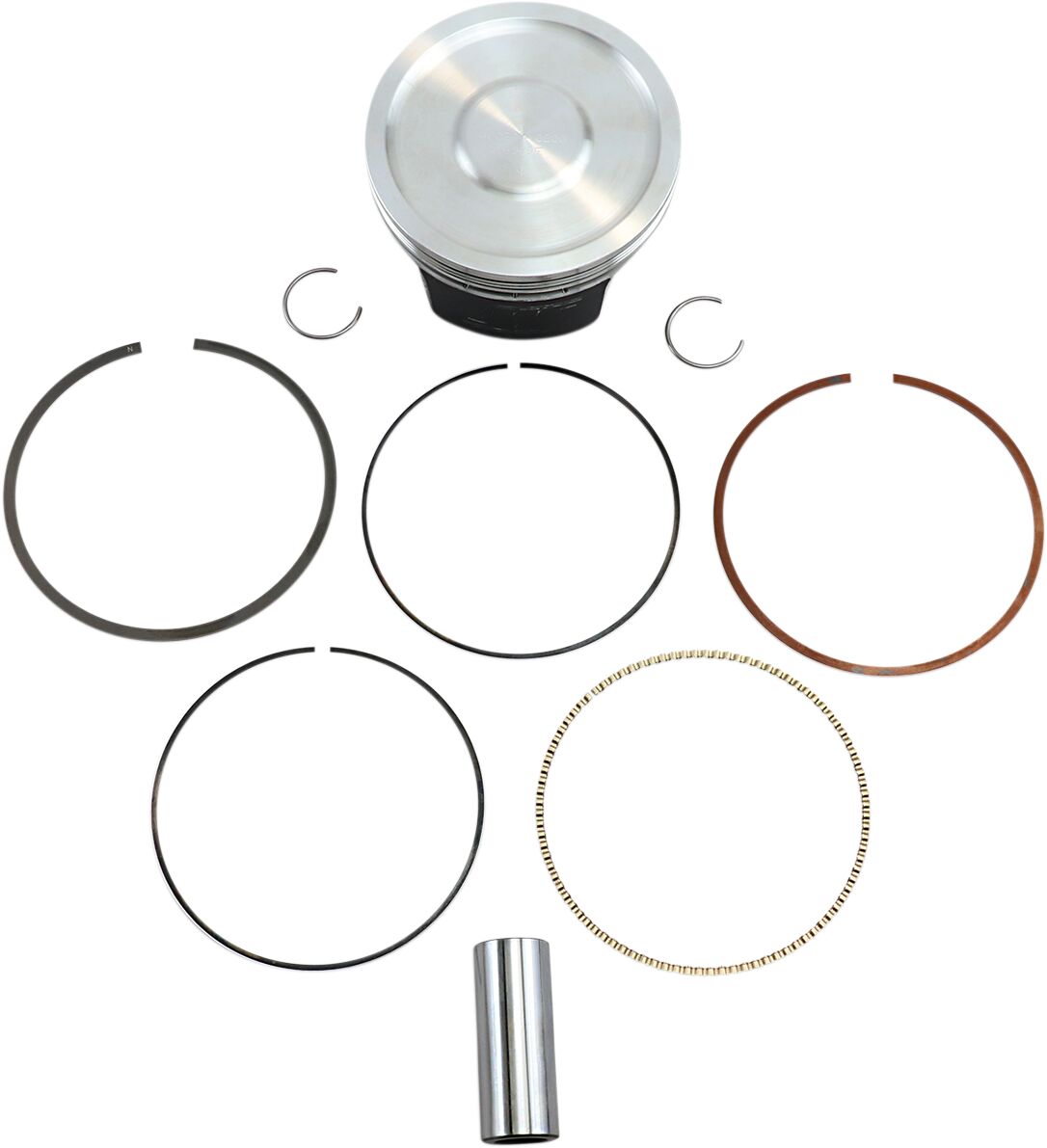

- Kit includes piston, wrist pin, rings and circlips
Kit Includes: • 1x Piston • 1x Ring Set #10200XS • 1x Wrist Pin #S724 • 1x Circlip Set #W5860
PISTON KIT ONLY (GASKETS NOT INCLUDED)
Note: Kit Includes: • 1x Piston • 1x Ring Set #10200XS • 1x Wrist Pin #S724 • 1x Circlip Set #W5860
Specifications
| Brand | WISECO |
|---|---|
| Manufacturer part number | W40080M10200 |
| Manufacturer description | PISTN KT ARCTIC 700 09-12 |
| Full description | PISTON KIT |
| Piston Material | Forged 2618 Aluminum |
| Stroke Length | 85.00 mm |
| Bore - Oversize | Standard |
| Bore Size | 102.00 mm |
| Piston Diameter | 101.95 mm |
| Product Name | Piston Kit |
| Units | Kit |
| Compression Ratio | 11.5:1 |
| Skirt Coating | ArmorGlide® |
| Riding Style | ATV |
| Displacement | 700 cc |
| Engine Type | 4-Stroke |
| Model | Forged Series |
| Country of origin | Japan |
| EAN | 0193564124562 |
In the box
- 1 x WISECO Piston Kit Forged Series for 4-Stroke (part number W40080M10200)
Sold individually unless the title or specification states otherwise.
Fits 16 models
- ARCTIC CAT 550 TRV GT 4x4 (2011-2015)
- ARCTIC CAT 700 TRV Cruiser 4x4 (2012-2015)
- ARCTIC CAT 700 TRV Cruiser PS 4x4 (2011-2012)
- ARCTIC CAT 700 TRV GT (2010-2011)
- ARCTIC CAT 700 TRV GT 4x4 (2012-2015)
- ARCTIC CAT 700 TRV LE Plus Automatic EFI 4x4 (2009-2014)
- ARCTIC CAT 700 TRV LTD 4x4 (2009-2012)
- ARCTIC CAT 700 TRV LTD EPS 4x4 (2009-2015)
- ARCTIC CAT 700 TRV S GT 4x4 (2009, 2011-2012)
- ARCTIC CAT 700 TRV XT EPS 4x4 (2009-2014)
- ARCTIC CAT H1 700 EFI 4X4 (2009-2012)
- ARCTIC CAT H1 700i TRV GT 4x4 (2011, 2013-2015)
- ARCTIC CAT PROWLER 700 EFI 4X4 (2009-2012)
- ARCTIC CAT TRV 700 LTD (2013-2015)
- ARCTIC CAT TRV 700 XT (2013-2015)
- ARCTIC CAT TRV 700i GT (2012)
Years shown are per model. If your bike is not listed, contact us with the year, make and model and we'll confirm before you buy.
Does it fit your bike?
16 models across 1 make. Not sure? Call the parts counter on 01570 470 022.
- 550 TRV GT 4x42011-2015
- 700 TRV Cruiser 4x42012-2015
- 700 TRV Cruiser PS 4x42011-2012
- 700 TRV GT2010-2011
- 700 TRV GT 4x42012-2015
- 700 TRV LE Plus Automatic EFI 4x42009-2014
- 700 TRV LTD 4x42009-2012
- 700 TRV LTD EPS 4x42009-2015
- 700 TRV S GT 4x42009, 2011-2012
- 700 TRV XT EPS 4x42009-2014
- H1 700 EFI 4X42009-2012
- H1 700i TRV GT 4x42011, 2013-2015
- PROWLER 700 EFI 4X42009-2012
- TRV 700 LTD2013-2015
- TRV 700 XT2013-2015
- TRV 700i GT2012
