S&S CYCLE Engine 136 Blk w/550G Cam OilCool RaceOnly M8 17-23 Touring 310-1289
S&S CYCLE Engine 136 Blk w/550G Cam OilCool RaceOnly M8 17-23 Touring 310-1289
Regular price
£13,131.15 GBP
Regular price
Sale price
£13,131.15 GBP
Unit price
per
Taxes included.
In stock, ready to ship
Couldn't load pickup availability
In stock at our shop in west Wales
1 on the shelf, packed and sent from Tal-sarn near Lampeter.
- Free click and collect from the shop at SA48 8QB, usually ready within 24 hours
- 30 days to change your mind, and we pay the postage if it is our mistake
Free UK delivery once your order passes £99. Standard £4.50, express £9.99.
In stock and ordered before 2.30pm? It goes out the same working day.
Not sure it is the right part? Call the parts counter on 01570 470 022.
- Brand
- S&S CYCLE
- Part number
- 09010264
- Category
- ENGINES-COMPLETE-ASSEMBLED

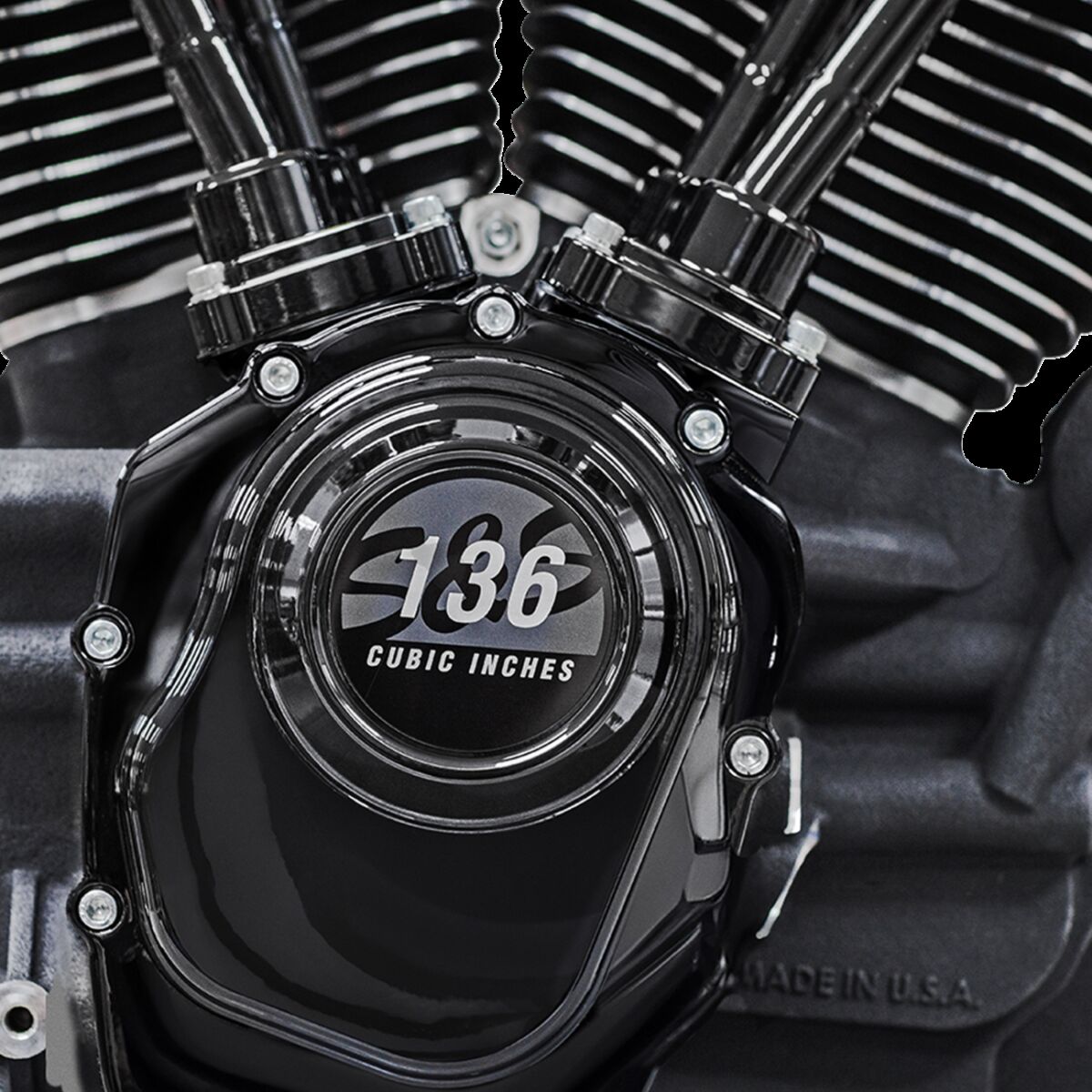

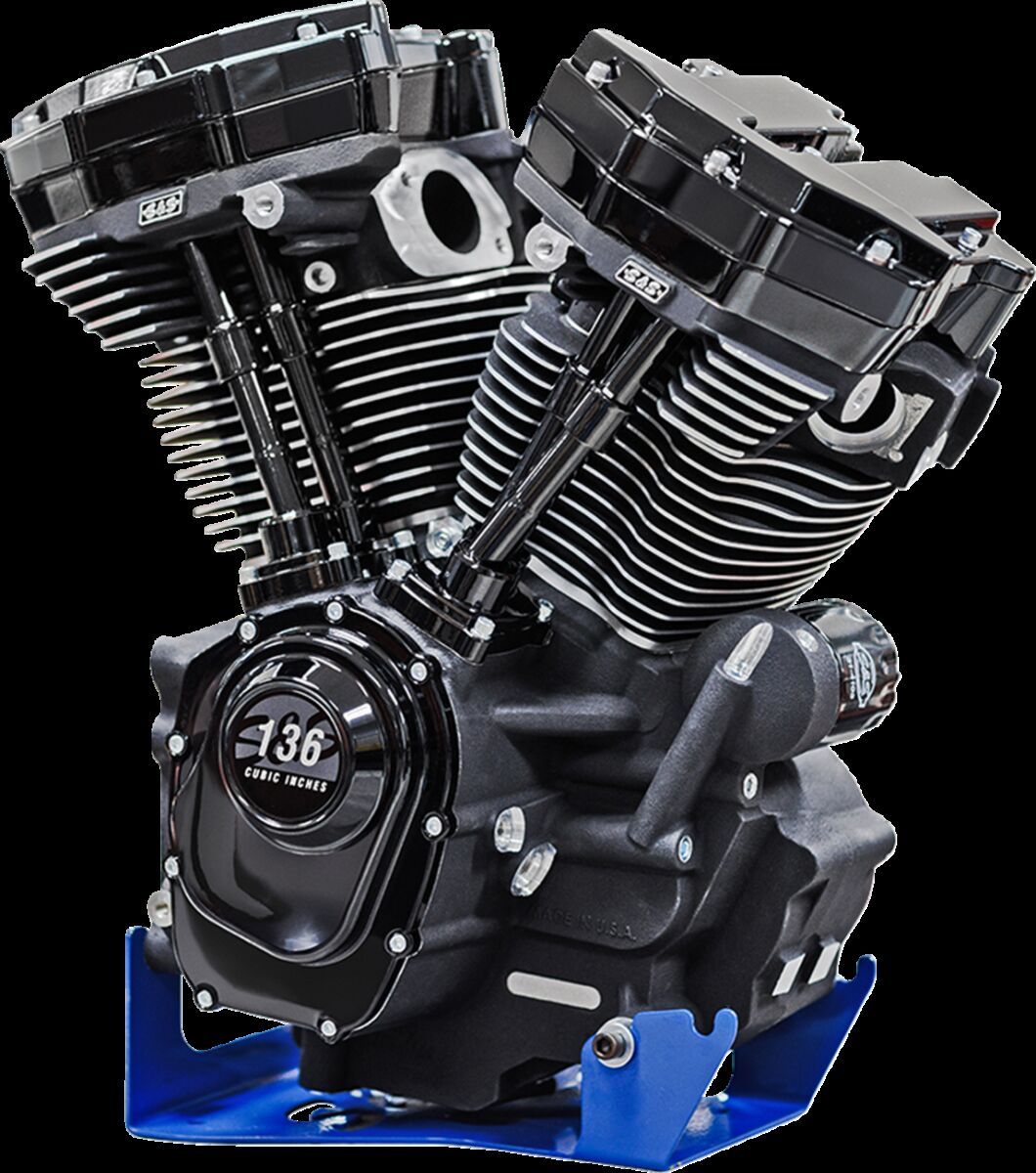

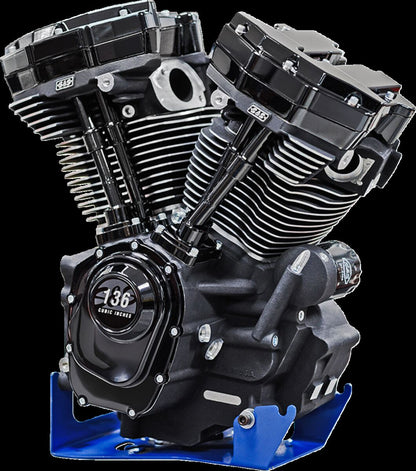

S&S CYCLE MK136 Black Edition Engine with 550G Cam
- Cylinder Heads:
- High-flow cylinder heads with premium seats, guides, valves, springs, and seals
- +1.00 mm oversized intake and exhaust valves
- Valves are 0.030" longer than stock for improved valvetrain geometry
- 0.605" max lift valve spring
- 550G gear drive cam
- Enlarged cooling passage around the exhaust seats
- S&S exclusive breather boxes
- Crankcase:
- Patented dual-spray piston cooling jets
- Precision machined oil scraper
- Enlarged oil sump
- Contoured floor allows oil to easily drain back to the sump
- MK136:
- Retains stock engine height
- Includes forged pistons, S&S performance oil pump and cam support plate, premiun tappets and tappet cuffs, billet aluminum covers, sprocket shaft spacer, Champion spark plugs and cam cover badge
- Made in the USA
Specifications
| Brand | S&S CYCLE |
|---|---|
| Manufacturer part number | 310-1289 |
| Manufacturer description | ENGINE - MK 136 - 550G - OIL C |
| Full description | Engine 136 Blk w/550G Cam OilCool RaceOnly M8 17-23 Touring |
In the box
- 1 x S&S CYCLE MK136 Black Edition Engine with 550G Cam (part number 310-1289)
Sold individually unless the title or specification states otherwise.
Fits 23 models
- HARLEY DAVIDSON FLH 1868 ABS (2021)
- HARLEY DAVIDSON FLHR 1750 (2017-2019)
- HARLEY DAVIDSON FLHR 1750 ABS (2017-2022)
- HARLEY DAVIDSON FLHRC 1750 ABS (2017-2019)
- HARLEY DAVIDSON FLHRXS 1750 ABS (2017-2018)
- HARLEY DAVIDSON FLHRXS 1868 ABS (2019-2023)
- HARLEY DAVIDSON FLHT 1750 ABS (2019-2022)
- HARLEY DAVIDSON FLHTCU 1750 ABS (2019)
- HARLEY DAVIDSON FLHX 1750 (2017-2019)
- HARLEY DAVIDSON FLHX 1750 ABS (2017-2023)
- HARLEY DAVIDSON FLHXS 1750 ABS (2017-2018)
- HARLEY DAVIDSON FLHXS 1868 ABS (2019-2023)
- HARLEY DAVIDSON FLHXSE 1923 ABS (2022)
- HARLEY DAVIDSON FLHXST 1923 ABS (2022-2023)
- HARLEY DAVIDSON FLRT 1750 (2017-2018)
- HARLEY DAVIDSON FLRT 1750 ABS (2019)
- HARLEY DAVIDSON FLRT 1868 ABS (2020-2023)
- HARLEY DAVIDSON FLTRT 1868 ABS (2023)
- HARLEY DAVIDSON FLTRX 1750 (2017-2019)
- HARLEY DAVIDSON FLTRX 1750 ABS (2017-2023)
- HARLEY DAVIDSON FLTRXS 1750 ABS (2017-2018)
- HARLEY DAVIDSON FLTRXS 1868 ABS (2019-2023)
- HARLEY DAVIDSON FLTRXST 1923 ABS (2022-2023)
Years shown are per model. If your bike is not listed, contact us with the year, make and model and we'll confirm before you buy.
Does it fit your bike?
23 models across 1 make. Not sure? Call the parts counter on 01570 470 022.
HARLEY DAVIDSON
- FLH 1868 ABS2021
- FLHR 17502017-2019
- FLHR 1750 ABS2017-2022
- FLHRC 1750 ABS2017-2019
- FLHRXS 1750 ABS2017-2018
- FLHRXS 1868 ABS2019-2023
- FLHT 1750 ABS2019-2022
- FLHTCU 1750 ABS2019
- FLHX 17502017-2019
- FLHX 1750 ABS2017-2023
- FLHXS 1750 ABS2017-2018
- FLHXS 1868 ABS2019-2023
- FLHXSE 1923 ABS2022
- FLHXST 1923 ABS2022-2023
- FLRT 17502017-2018
- FLRT 1750 ABS2019
- FLRT 1868 ABS2020-2023
- FLTRT 1868 ABS2023
- FLTRX 17502017-2019
- FLTRX 1750 ABS2017-2023
- FLTRXS 1750 ABS2017-2018
- FLTRXS 1868 ABS2019-2023
- FLTRXST 1923 ABS2022-2023
