Feuling Parts VALVE SPRING KIT ENDURANCE BEEHIVE 1105

Feuling Parts Endurance Beehive® Valve Springs with Titanium Retainers

Valve Spring Kit - For 7.00 mm Valve Stem - 88"/96"/103" Twin Cam | XL | XR1200

• Machined from premium-grade hi-tensile chrome silicon single-conical ovate wire
• Shot-peened with specially processed thermal heat treat and super NexTex® finish for fatigue life needed to exceed high demands of V-Twin engines
• Use a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
• Direct bolt-in replacement up to 0.650" cam lift; no machining or rocker box clearancing required

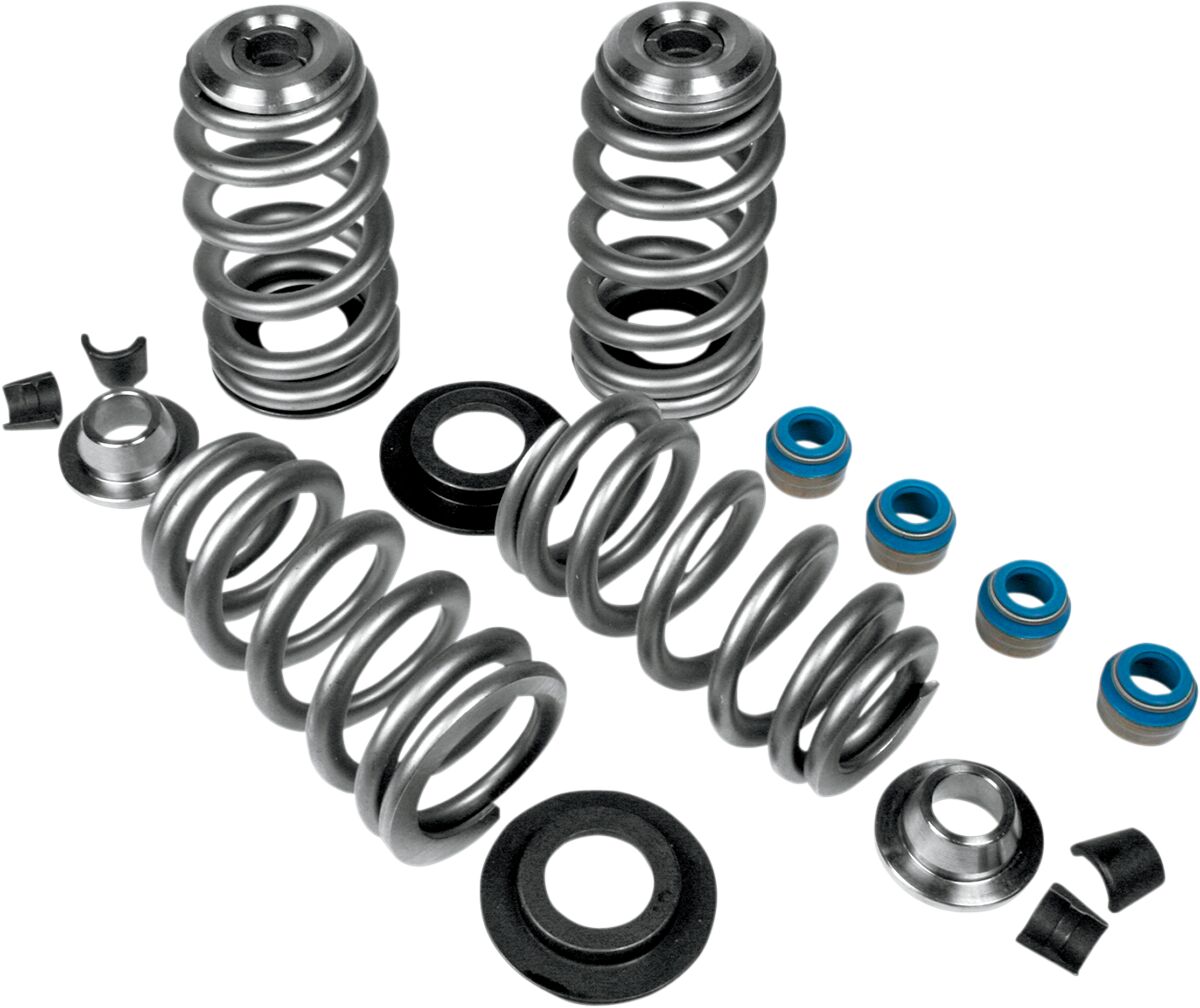

• Kits include: Endurance BeeHive® valve springs, lightweight 7° super Titanium heat-treated retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
• Made in the USA
• Seat lb / installed height:
• 198 lb @ 1.685" (0.535" lift)
• 194 lb @ 1.703" (0.553" lift)
• 190 lb @ 1.724" (0.574" lift)
• 187 lb @ 1.754" (0.604" lift)
• 185 lb @ 1.780" (0.630" lift)
• 160 lb @ 1.800" (0.650" lift)
• 375 lb @ 1.150" Open Height
• Coil Bind @ 1.100"
• Must be installed at the correct open height, matching max lift to the open height spec of the valve springs.
• Feuling® BeeHive® valve spring kits are direct replacement with no machining or rocker box clearance required up to 0.574" lift for '98-'04 Big Twin and '86-'03 XL and up to 0.650" lift for '05-'17 Twin Cam. Larger camshafts require valve guide machining for seal to retainer clearance.

Note: Not for RH Sportster.

⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. www.P65Warnings.ca.gov

Specifications

In the box

• 1 x Feuling Parts Endurance Beehive® Valve Springs with Titanium Retainers (part number 1105)

Sold individually unless the title or specification states otherwise.

Fits 149 models

• HARLEY DAVIDSON 1200 Custom EFI XLC (2004-2006)
• HARLEY DAVIDSON 1200 Low EFI XLL (2006)
• HARLEY DAVIDSON 1200 Roadster EFI XLR (2006)
• HARLEY DAVIDSON 1200 XLCP (2011-2017)
• HARLEY DAVIDSON 15th Anniversary Fat Boy FLSTF (2005)
• HARLEY DAVIDSON 883 Custom EFI XLC (2004-2006)
• HARLEY DAVIDSON 883 EFI XL (2009)
• HARLEY DAVIDSON 883 Low EFI XLL (2006)
• HARLEY DAVIDSON 883 Roadster EFI XLR (2005-2006)
• HARLEY DAVIDSON 883 Roadster XLR (2007)
• HARLEY DAVIDSON CVO Road King FLHRSE (2014)
• HARLEY DAVIDSON Electra Glide Classic FLHTC (2006)
• HARLEY DAVIDSON Electra Glide Police FLHTP (2005-2006)
• HARLEY DAVIDSON Electra Glide Police FLHTPI (2005-2016)
• HARLEY DAVIDSON Electra Glide Ultra Classic FLHTCU (2005-2006)
• HARLEY DAVIDSON Electra Glide Ultra Classic Low FLHTCUL (2014)
• HARLEY DAVIDSON Fat Boy Lo FLSTFB (2009)
• HARLEY DAVIDSON FLD Switchback (2012-2016)
• HARLEY DAVIDSON FLHR Road King (2005-2016)
• HARLEY DAVIDSON FLHRC Road King Classic (2007-2013)
• HARLEY DAVIDSON FLHRCI Road King Classic (2005-2006)
• HARLEY DAVIDSON FLHRI Road King (2005-2006)
• HARLEY DAVIDSON FLHRS Road King Custom (2005-2007)
• HARLEY DAVIDSON FLHRSE3 Screamin Eagle Road King (2007)
• HARLEY DAVIDSON FLHRSE4 Screamin Eagle Road King (2008)
• HARLEY DAVIDSON FLHRSE5 CVO Road King (2013)
• HARLEY DAVIDSON FLHRSI Road King Custom (2005-2006)
• HARLEY DAVIDSON FLHT Electra Glide Standard (2005-2009)
• HARLEY DAVIDSON FLHTC Electra Glide Classic (2005, 2007-2013)
• HARLEY DAVIDSON FLHTCI Electra Glide Classic (2005-2006)
• HARLEY DAVIDSON FLHTCSE2 Screamin Eagle Electra Glide 2 (2005)
• HARLEY DAVIDSON FLHTCU Electra Glide Ultra Classic (2007-2016)
• HARLEY DAVIDSON FLHTCUI Electra Glide Ultra Classic (2005-2006)
• HARLEY DAVIDSON FLHTCUL Electra Glide Ultra Classic Low (2015-2016)
• HARLEY DAVIDSON FLHTCUSE Screamin Eagle Ultra Classic Electra Glide (2006)
• HARLEY DAVIDSON FLHTCUSE2 Screamin Eagle Ultra Classic Electra Glide (2007)
• HARLEY DAVIDSON FLHTCUSE3 Screamin Eagle Ultra Classic Electra Glide (2008)
• HARLEY DAVIDSON FLHTCUSE4 CVO Ultra Classic Electra Glide (2009)
• HARLEY DAVIDSON FLHTCUSE5 CVO Ultra Classic Electra Glide (2010)
• HARLEY DAVIDSON FLHTCUSE6 CVO Ultra Classic Electra Glide (2011)
• HARLEY DAVIDSON FLHTCUSE7 CVO Ultra Classic Electra Glide (2012)
• HARLEY DAVIDSON FLHTCUSE8 CVO Ultra Classic Electra Glide (2013)
• HARLEY DAVIDSON FLHTI Electra Glide Standard (2005-2006)
• HARLEY DAVIDSON FLHTK Electra Glide Ultra Limited (2010-2014)
• HARLEY DAVIDSON FLHTK Ultra Limited (2010-2016)
• HARLEY DAVIDSON FLHTKL Ultra Limited Low (2015-2016)
• HARLEY DAVIDSON FLHTKSE CVO Limited (2014-2016)
• HARLEY DAVIDSON FLHX Street Glide (2006-2016)
• HARLEY DAVIDSON FLHXI Street Glide (2006)
• HARLEY DAVIDSON FLHXS Street Glide Special (2014-2016)
• HARLEY DAVIDSON FLHXSE CVO Street Glide (2010, 2015-2016)
• HARLEY DAVIDSON FLHXSE2 CVO Street Glide (2011)
• HARLEY DAVIDSON FLHXSE3 CVO Street Glide (2012)
• HARLEY DAVIDSON FLS Softail Slim (2012-2017)
• HARLEY DAVIDSON FLSS Softail Slim S (2016-2017)
• HARLEY DAVIDSON FLST Heritage Softail (2006)
• HARLEY DAVIDSON FLSTC Heritage Softail Classic (2005-2017)
• HARLEY DAVIDSON FLSTCI Heritage Softail Classic (2005-2006)
• HARLEY DAVIDSON FLSTF Fat Boy (2005-2017)
• HARLEY DAVIDSON FLSTFB Fat Boy Lo (2010-2017)
• HARLEY DAVIDSON FLSTFBS Fat Boy S (2016-2017)
• HARLEY DAVIDSON FLSTFI Fat Boy (2005-2006)
• HARLEY DAVIDSON FLSTFSE Screamin Eagle Fat Boy (2005-2006)
• HARLEY DAVIDSON FLSTFSE2 Screamin Eagle Fat Boy (2006)
• HARLEY DAVIDSON FLSTI Heritage Softail (2006)
• HARLEY DAVIDSON FLSTN Softail Deluxe (2005-2017)
• HARLEY DAVIDSON FLSTNI Softail Deluxe (2005-2006)
• HARLEY DAVIDSON FLSTNSE CVO Softail Deluxe (2014-2015)
• HARLEY DAVIDSON FLSTSB Cross Bones (2008-2011)
• HARLEY DAVIDSON FLSTSC Softail Springer Classic (2005-2007)
• HARLEY DAVIDSON FLSTSCI Softail Springer Classic (2005-2006)
• HARLEY DAVIDSON FLSTSE CVO Softail Convertible (2010)
• HARLEY DAVIDSON FLSTSE2 CVO Softail Convertible (2011)
• HARLEY DAVIDSON FLSTSE3 CVO Softail Convertible (2012)
• HARLEY DAVIDSON FLTR Road Glide (2005-2010, 2016)
• HARLEY DAVIDSON FLTRI Road Glide (2005-2006)
• HARLEY DAVIDSON FLTRSE3 CVO Road Glide (2009)
• HARLEY DAVIDSON FLTRU Road Glide Ultra (2011-2013, 2016)
• HARLEY DAVIDSON FLTRUSE CVO Road Glide Ultra (2011, 2015-2016)
• HARLEY DAVIDSON FLTRX Road Glide (2015-2016)
• HARLEY DAVIDSON FLTRX Road Glide Custom (2010-2013)
• HARLEY DAVIDSON FLTRXS Road Glide Special (2015-2016)
• HARLEY DAVIDSON FLTRXSE CVO Road Glide Custom (2012)
• HARLEY DAVIDSON FLTRXSE2 CVO Road Glide Custom (2013)
• HARLEY DAVIDSON FXCW Rocker (2008-2009)
• HARLEY DAVIDSON FXCWC Rocker C (2008-2011)
• HARLEY DAVIDSON FXD Dyna Super Glide (2005-2010)
• HARLEY DAVIDSON FXDB Street Bob (2006-2017)
• HARLEY DAVIDSON FXDBI Street Bob (2006)
• HARLEY DAVIDSON FXDC Super Glide Custom (2005, 2007-2014)
• HARLEY DAVIDSON FXDCI Super Glide Custom (2005-2006)
• HARLEY DAVIDSON FXDF Fat Bob (2008-2017)
• HARLEY DAVIDSON FXDFSE CVO Dyna Fat Bob (2009)
• HARLEY DAVIDSON FXDFSE2 CVO Dyna Fat Bob (2010)
• HARLEY DAVIDSON FXDI Dyna Super Glide (2005-2006)
• HARLEY DAVIDSON FXDI35 Dyna 35th Anniversary Super Glide (2006)
• HARLEY DAVIDSON FXDL Dyna Low Rider (2005, 2007-2009, 2014)
• HARLEY DAVIDSON FXDL Low Rider (2014-2017)
• HARLEY DAVIDSON FXDLI Dyna Low Rider (2005-2006)
• HARLEY DAVIDSON FXDLS Low Rider S (2016-2017)
• HARLEY DAVIDSON FXDSE Screamin Eagle Dyna (2007)
• HARLEY DAVIDSON FXDSE2 Screamin Eagle Dyna (2008)
• HARLEY DAVIDSON FXDWG Dyna Wide Glide (2005-2008, 2010-2017)
• HARLEY DAVIDSON FXDWGI Dyna Wide Glide (2005-2006)
• HARLEY DAVIDSON FXDX Dyna Super Glide Sport (2005)
• HARLEY DAVIDSON FXDXI Dyna Super Glide Sport (2005)
• HARLEY DAVIDSON FXS Blackline (2011-2013)
• HARLEY DAVIDSON FXSB Breakout (2013-2017)
• HARLEY DAVIDSON FXSBSE CVO Breakout (2013-2014)
• HARLEY DAVIDSON FXSE CVO Pro Street Breakout (2016-2017)
• HARLEY DAVIDSON FXST Softail Standard (2005-2009)
• HARLEY DAVIDSON FXSTB Night Train (2005-2009)
• HARLEY DAVIDSON FXSTBI Night Train (2005-2006)
• HARLEY DAVIDSON FXSTC Softail Custom (2007-2010)
• HARLEY DAVIDSON FXSTD Softail Deuce (2005-2007)
• HARLEY DAVIDSON FXSTDI Softail Deuce (2005-2006)
• HARLEY DAVIDSON FXSTI Softail Standard (2005-2006)
• HARLEY DAVIDSON FXSTS Springer Softail (2005-2006)
• HARLEY DAVIDSON FXSTSI Springer Softail (2005-2006)
• HARLEY DAVIDSON FXSTSSE Screamin Eagle Softail Springer (2007)
• HARLEY DAVIDSON FXSTSSE2 Screamin Eagle Softail Springer (2008)
• HARLEY DAVIDSON FXSTSSE3 CVO Softail Springer (2009)
• HARLEY DAVIDSON Low Rider FXDL (2006)
• HARLEY DAVIDSON Road King Police FLHP (2007, 2009-2016)
• HARLEY DAVIDSON Softail Rocker C FXCWC (2007)
• HARLEY DAVIDSON Softail Rocker FXCW (2007, 2010)
• HARLEY DAVIDSON Softail Standard EFI FXSTI (2010-2012)
• HARLEY DAVIDSON Sportster 1200 X XR (2009)
• HARLEY DAVIDSON Sportster 1200 XR (2011-2012)
• HARLEY DAVIDSON XL1200C Sportster 1200 Custom (2004-2019)
• HARLEY DAVIDSON XL1200CX Roadster (2016-2020)
• HARLEY DAVIDSON XL1200L Sportster 1200 Low (2006-2011)
• HARLEY DAVIDSON XL1200N Sportster 1200 Nightster (2007-2012)
• HARLEY DAVIDSON XL1200NS Iron 1200 (2018-2021)
• HARLEY DAVIDSON XL1200R Sportster 1200 Roadster (2004-2009)
• HARLEY DAVIDSON XL1200T SuperLow 1200T (2014-2017)
• HARLEY DAVIDSON XL1200V Seventy-Two (2012-2016)
• HARLEY DAVIDSON XL1200X Forty-Eight (2010-2022)
• HARLEY DAVIDSON XL1200XS Forty-Eight Special (2018-2019)
• HARLEY DAVIDSON XL50 50th Anniversary Sportster (2007)
• HARLEY DAVIDSON XL883 Sportster (2004-2008)
• HARLEY DAVIDSON XL883C Sportster 883 Custom (2004-2009)
• HARLEY DAVIDSON XL883L Sportster 883 Low (2005-2010)
• HARLEY DAVIDSON XL883L SuperLow (2011-2019)
• HARLEY DAVIDSON XL883N Iron 883 (2009-2022)
• HARLEY DAVIDSON XL883R Sportster 883 Roadster (2005-2007)
• HARLEY DAVIDSON XLH883 (2004)
• HARLEY DAVIDSON XR1200 (2009-2010)
• HARLEY DAVIDSON XR1200X (2010-2012)

Years shown are per model. If your bike is not listed, contact us with the year, make and model and we'll confirm before you buy.
