Feuling Parts CAMSHAFTS 505/515 REAPER XL AND BUELL 1370
Feuling Parts CAMSHAFTS 505/515 REAPER XL AND BUELL 1370
Regular price
£489.90 GBP
Regular price
Sale price
£489.90 GBP
Unit price
per
Taxes included.
In stock, ready to ship
Couldn't load pickup availability
In stock at our shop in west Wales
6 on the shelf, packed and sent from Tal-sarn near Lampeter.
- Free click and collect from the shop at SA48 8QB, usually ready within 24 hours
- 30 days to change your mind, and we pay the postage if it is our mistake
Free UK delivery once your order passes £99. Standard £4.50, express £9.99.
In stock and ordered before 2.30pm? It goes out the same working day.
Not sure it is the right part? Call the parts counter on 01570 470 022.
- Brand
- Feuling Parts
- Part number
- 09250748
- Category
- CAMS + PARTS

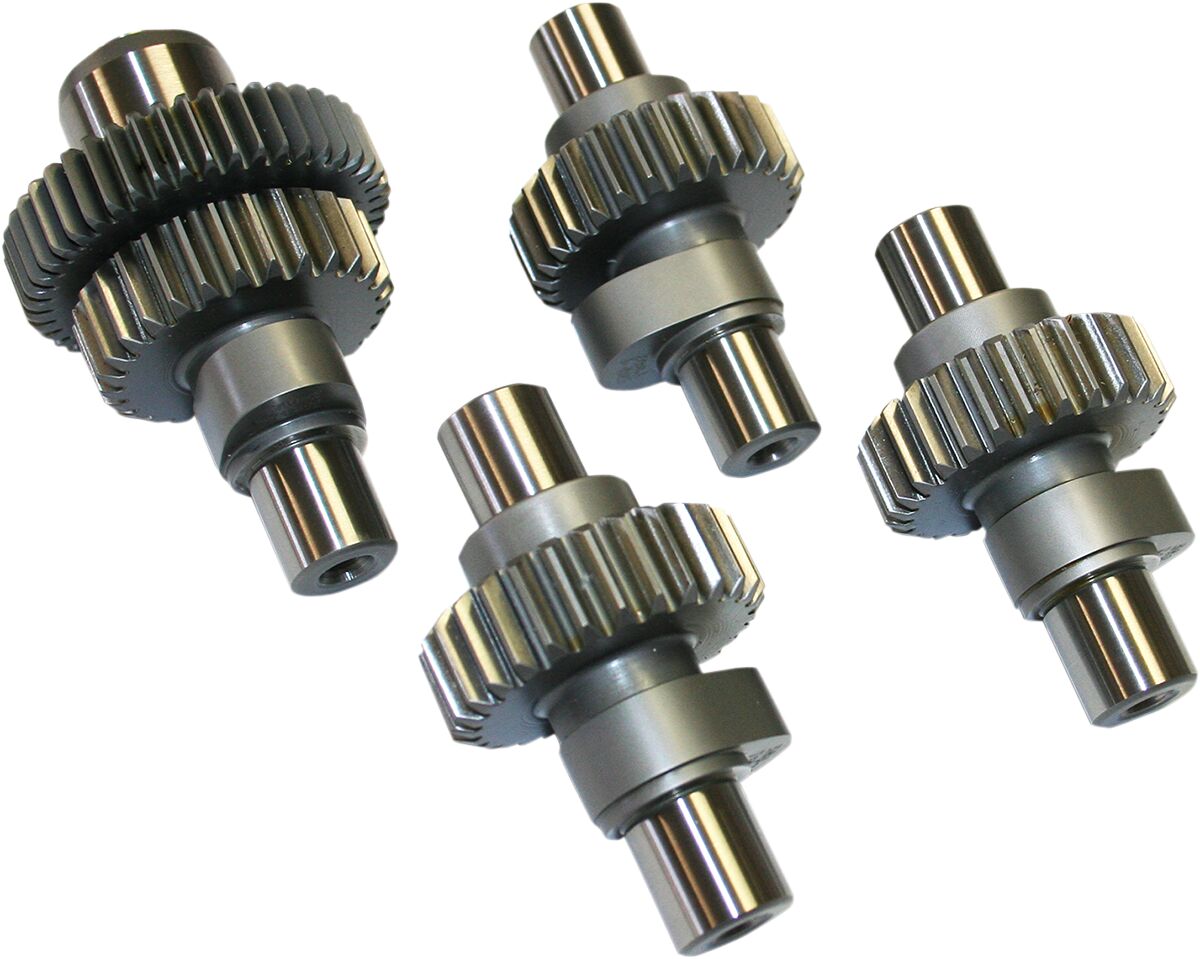

Feuling Parts Reaper® 505/515 Cam
Reaper Camshafts - 505/515 - Buell | XL
- Produce a wide powerband in stock engines
- Split lift camshaft produces a solid powerband with top fuel sound
- Fueling recommends new camshafts with new lifters (not required)
- RPM range 2,100-6,800+
- Overlap: 26
- Can be used with stock pushrods and valve springs.
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. www.P65Warnings.ca.gov
Specifications
| Brand | Feuling Parts |
|---|---|
| Manufacturer part number | 1370 |
| Manufacturer description | CAMSHAFTS 505/515 XL |
| Full description | CAMSHAFTS 505/515 REAPER XL AND BUELL |
| Exhaust Close | 15° |
| Intake Open | 11° |
| Exhaust Open | 53° |
| Riding Style | Street |
| Exhaust Lift at TDC | 0.150" |
| Application | Exhaust, Intake |
| Intake Close | 48° |
| Intake Duration | 239° |
| Intake Lift at TDC | 0.137" |
| Type | Split Lift |
| Grind | 505 Series, 515 Series |
| Intake Lift | 0.505" |
| Exhaust Lift | 0.515" |
| Intake Lobe Centerline | 108.5° |
| Units | Set |
| Exhaust Lobe Centerline | 109° |
| Product Name | Camshaft |
| Exhaust Duration | 248° |
| Model | Reaper |
| Country of origin | USA |
In the box
- 1 x Feuling Parts Reaper® 505/515 Cam (part number 1370)
Sold individually unless the title or specification states otherwise.
Fits 39 models
- HARLEY DAVIDSON 1200 Custom EFI XLC (2002-2006)
- HARLEY DAVIDSON 1200 Low EFI XLL (2006)
- HARLEY DAVIDSON 1200 Roadster EFI XLR (2006)
- HARLEY DAVIDSON 1200 XLCP (2002-2003, 2011-2017)
- HARLEY DAVIDSON 883 Custom EFI XLC (2000-2006)
- HARLEY DAVIDSON 883 EFI XL (2009)
- HARLEY DAVIDSON 883 Low EFI XLL (2006)
- HARLEY DAVIDSON 883 Roadster EFI XLR (2002-2003, 2005-2006)
- HARLEY DAVIDSON 883 Roadster XLR (2007)
- HARLEY DAVIDSON Sportster 1200 X XR (2009)
- HARLEY DAVIDSON Sportster 1200 XLH (2000-2003)
- HARLEY DAVIDSON Sportster 1200 XR (2011-2012)
- HARLEY DAVIDSON Sportster 883 XLH (2000-2003)
- HARLEY DAVIDSON XL1200C Sportster 1200 Custom (2000-2019)
- HARLEY DAVIDSON XL1200CX Roadster (2016-2020)
- HARLEY DAVIDSON XL1200L Sportster 1200 Low (2006-2011)
- HARLEY DAVIDSON XL1200N Sportster 1200 Nightster (2007-2012)
- HARLEY DAVIDSON XL1200NS Iron 1200 (2018-2020)
- HARLEY DAVIDSON XL1200R Sportster 1200 Roadster (2004-2009)
- HARLEY DAVIDSON XL1200S Sportster 1200 Sport (2000-2003)
- HARLEY DAVIDSON XL1200T SuperLow 1200T (2014-2017)
- HARLEY DAVIDSON XL1200V Seventy-Two (2012-2016)
- HARLEY DAVIDSON XL1200X Forty-Eight (2010-2020)
- HARLEY DAVIDSON XL1200XS Forty-Eight Special (2018-2019)
- HARLEY DAVIDSON XL50 50th Anniversary Sportster (2007)
- HARLEY DAVIDSON XL883 Sportster (2004-2008)
- HARLEY DAVIDSON XL883C Sportster 883 Custom (2000-2009)
- HARLEY DAVIDSON XL883L Sportster 883 Low (2005-2010)
- HARLEY DAVIDSON XL883L SuperLow (2011-2019)
- HARLEY DAVIDSON XL883N Iron 883 (2009-2020)
- HARLEY DAVIDSON XL883R Sportster 883 Roadster (2002-2003, 2005-2007)
- HARLEY DAVIDSON XLH883 (2000-2001)
- HARLEY DAVIDSON XLH883HUG Sportster 883 Hugger (2002-2003)
- HARLEY DAVIDSON XR1200 (2010)
- HARLEY DAVIDSON XR1200X (2010-2012)
- BUELL M2 Cyclone (2000-2002)
- BUELL S3 Thunderbolt (2000-2002)
- BUELL S3T Thunderbolt (2000)
- BUELL X1 Lightning (2000-2002)
Years shown are per model. If your bike is not listed, contact us with the year, make and model and we'll confirm before you buy.
Does it fit your bike?
39 models across 2 makes. Not sure? Call the parts counter on 01570 470 022.
HARLEY DAVIDSON
- 1200 Custom EFI XLC2002-2006
- 1200 Low EFI XLL2006
- 1200 Roadster EFI XLR2006
- 1200 XLCP2002-2003, 2011-2017
- 883 Custom EFI XLC2000-2006
- 883 EFI XL2009
- 883 Low EFI XLL2006
- 883 Roadster EFI XLR2002-2003, 2005-2006
- 883 Roadster XLR2007
- Sportster 1200 X XR2009
- Sportster 1200 XLH2000-2003
- Sportster 1200 XR2011-2012
- Sportster 883 XLH2000-2003
- XL1200C Sportster 1200 Custom2000-2019
- XL1200CX Roadster2016-2020
- XL1200L Sportster 1200 Low2006-2011
- XL1200N Sportster 1200 Nightster2007-2012
- XL1200NS Iron 12002018-2020
- XL1200R Sportster 1200 Roadster2004-2009
- XL1200S Sportster 1200 Sport2000-2003
- XL1200T SuperLow 1200T2014-2017
- XL1200V Seventy-Two2012-2016
- XL1200X Forty-Eight2010-2020
- XL1200XS Forty-Eight Special2018-2019
- XL50 50th Anniversary Sportster2007
- XL883 Sportster2004-2008
- XL883C Sportster 883 Custom2000-2009
- XL883L Sportster 883 Low2005-2010
- XL883L SuperLow2011-2019
- XL883N Iron 8832009-2020
- XL883R Sportster 883 Roadster2002-2003, 2005-2007
- XLH8832000-2001
- XLH883HUG Sportster 883 Hugger2002-2003
- XR12002010
- XR1200X2010-2012
BUELL
- M2 Cyclone2000-2002
- S3 Thunderbolt2000-2002
- S3T Thunderbolt2000
- X1 Lightning2000-2002
